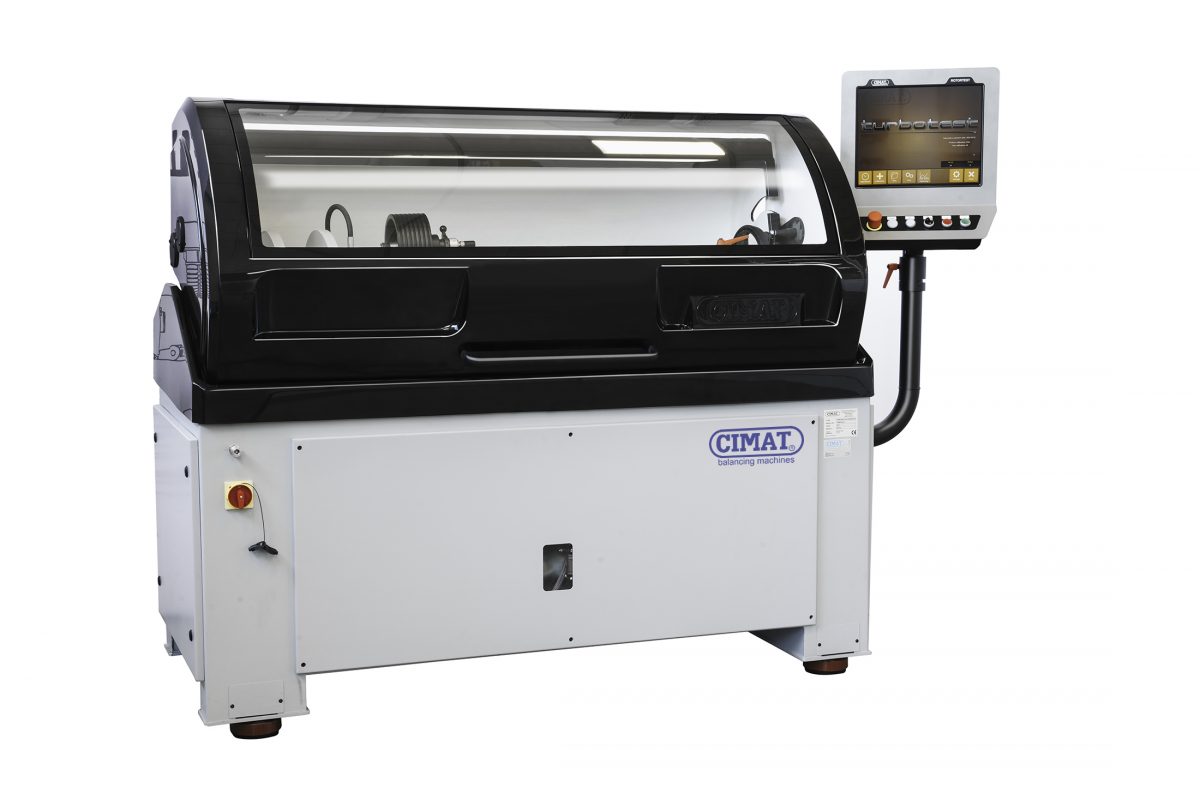

TURBO TEST DUO
Combined high-speed core balancing machine and dynamic turbocharger flow bench

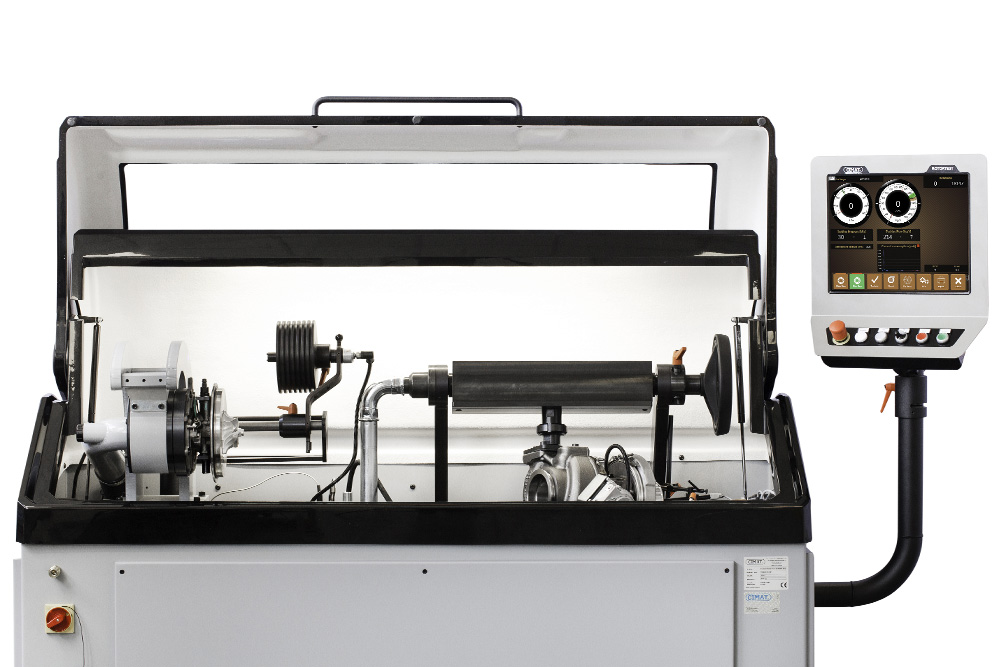

Turbo Test Duo combines a high-speed core balancing machine and a turbocharger calibration machine also known as a flow bench. The machine supports the turbochargers of passenger cars, light-duty trucks and heavy-duty trucks.
Parameters

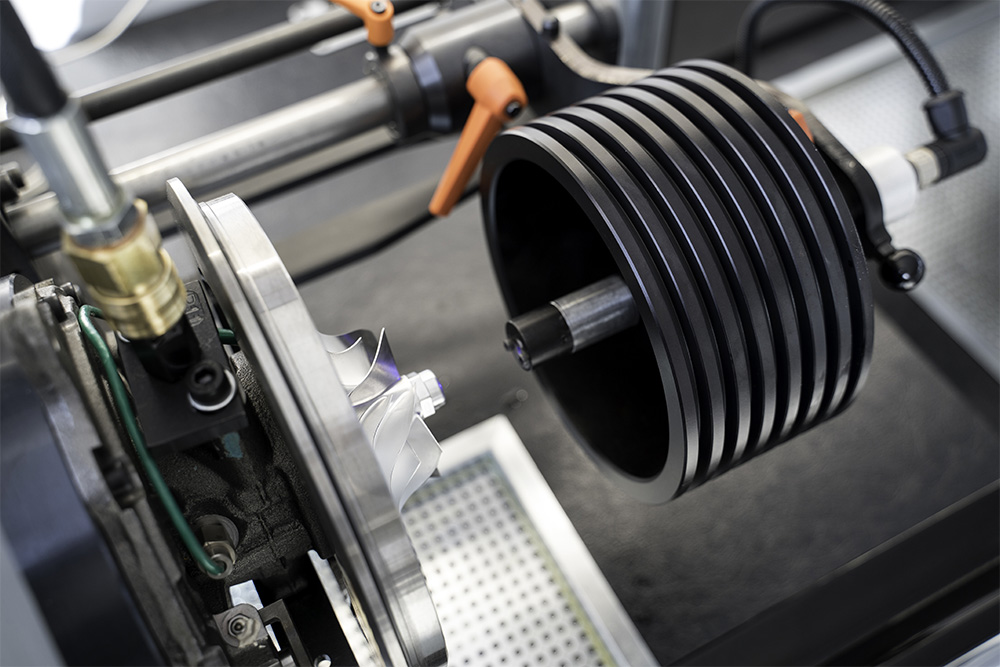

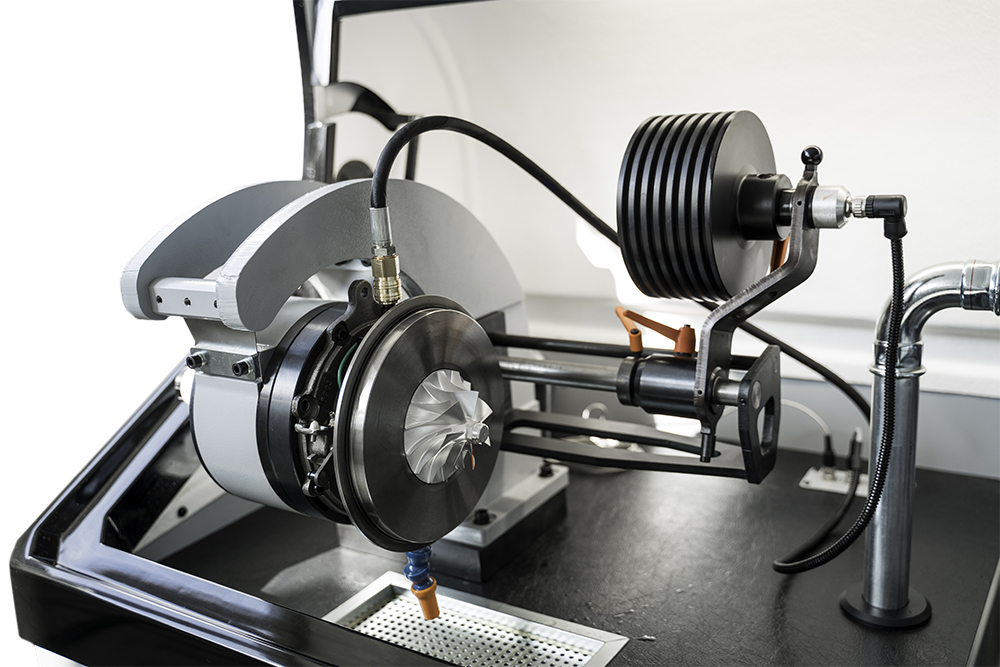

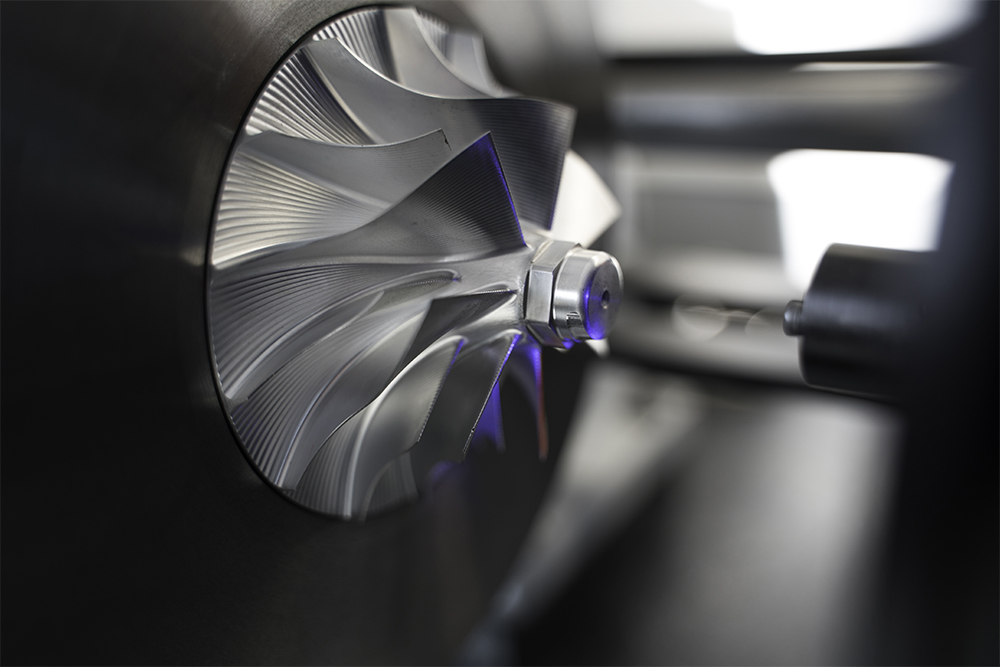

HIGH-SPEED CORE BALANCING MACHINE
| DESCRIPTION | PARAMETER |
|---|---|
| Maximum diameter of turbine wheel | 80 mm (exducer) / 91 mm (inducer) |
| Maximum diameter of compressor wheel | 109 mm |
| Maximum rotational speed value | 300.000 rpm |
| Unit of measurement | G, m/s² |
| Speed / cycle control | Automatic |
| Correction point | Automatically calculated |
| Balancing of core with a reverse rotation | Yes |

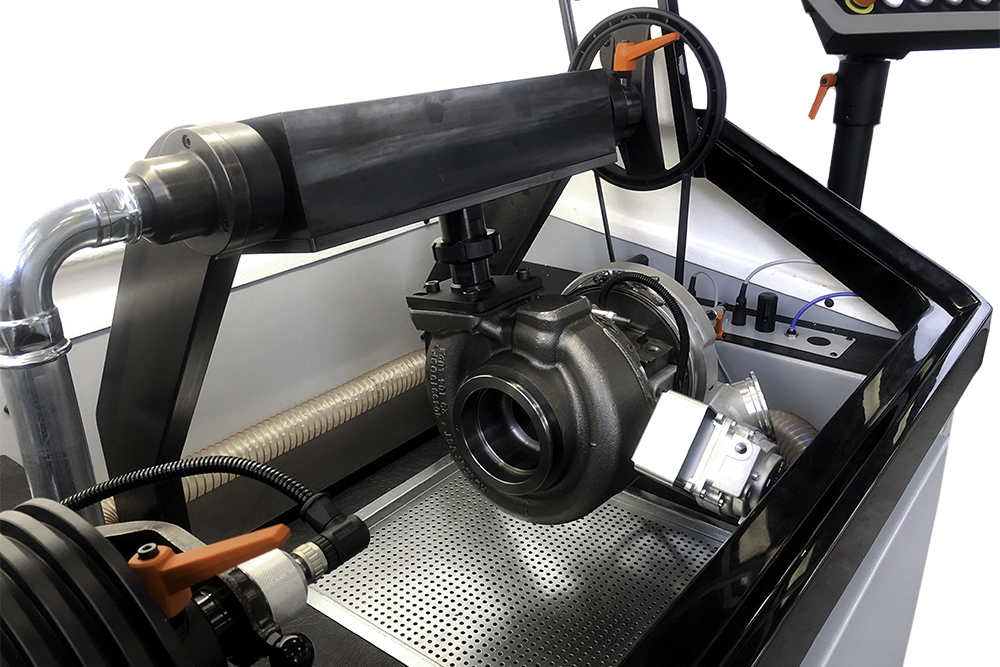

TURBOCHARGER FLOW BENCH
| DESCRIPTION | PARAMETER |
|---|---|
| Maximum turbine inlet air pressure | 250 kPa |
| Air mass flow measurement accuracy | +/- 1 kg/h |
| Maximum mass air flow that can be measured | 450 kg/h at 1 bar turbine inlet pressure at 25°C air injection temperature |
| Maximum volume air flow that can be measured | 380 m³/h at a turbine inlet pressure of 1 bar and an inlet air temperature of 25°C |
| Turbocharger position | Like in a car with an oil drain directed downward to achieve the highest measurement accuracy |
Pro vs Expert
Turbo Test Duo Pro
In addition to the high-speed balancing feature, the machine enables you to calibrate turbochargers by the adjustment of the air mass flow of the turbine section. The measurement can be conducted in a static or dynamic mode. The dynamic mode enables you to measure the rotational speed of turbocharger. As a result it is possible to determine turbocharger’s technical condition and its more precise adjustment than in case of the static mode.
Turbo Test Duo Expert
This model of the machine enables you to restore 100% turbocharger’s performance by its calibration according to turbocharger’s pressure ratio measured under load at high speeds. The pressure ratio is turbocharger’s outlet parameter that defines its performance. It enables the precise determination of turbocharger’s technical condition and its most accurate calibration.
| Function | Turbo Test Duo Pro | Turbo Test Duo Expert |
|---|---|---|
| High-speed core balancing | Yes | Yes |
| Static measurement of turbine section mass flow | Yes | Yes |
| Dynamic measurement of turbine section mass air flow while the simultaneous measurement of turbocharger rotational speed. | Yes | Yes |
| P2/P1 turbocharger pressure ratio measurement under load at high-rotational speed while the simultaneous measurement of turbocharger rotational speed. | – | Yes |
| Compressor section volume air flow measurement. | Optional | Optional |
| 12V and 24V electric actuator current draw measurement. | Yes | Yes |
| REA operating angle programming. | Yes | Yes |
| Siemens VDO adaptation | Yes | Yes |
| Clearance measurement of HELLA electric actuators | Yes | Yes |
| Voltage measurement of position sensors | Yes | Yes |
| Rod length adjustment of vacuum and pressure actuators according to mass air flow | Yes | Yes |
| VNT lever operating angle check | Yes | Yes |
| Holset electric actuator programming – the expected release date is the 2nd quarter of 2022 | Yes | Yes |
